9.3 Extending the domain model

9.3.1 Introduction

ASAM OpenSCENARIO allows users to extend the normative domain model using the extension mechanism.

The extension mechanism allows to:

Define actors and actions from scratch.
Tune the normative domain model to project needs.
Map the ASAM OpenSCENARIO domain model to other existing standards or commercial domain models.

The extension mechanism is defined in Section 7.3.9, "Extension".

This document discusses possible extensions and adjustments that can be made through the extension mechanism.

9.3.2 ASAM OpenSCENARIO extension features

The ASAM OpenSCENARIO language provides multiple features for extensions and adjustments.

Users can use one of the following programming paradigms:

Aspect Oriented Programming (AOP)
AOP allows adding any struct member to extend structs without introducing new type names. Note that you can also extend enumerated types to include new values.
Object Oriented Programming (OOP)
OOP with traditional inheritance allows the introduction of a new struct name to the type system. This is done by deriving (also called inheriting) the new name from an existing one.

With the extension mechanism, users can define or extend actions, actors, and structs to add specific members.

Typical reasons for extending the domain model are:

Layering constraints to add an ODD or a test constraint to steer the desired generated values and probabilities to explore unvisited areas or to match a specific distribution
Adding fields for controlling or monitoring purposes
Adding new or overriding existing coverage definitions
Adding or tuning checkers
Extending the definition of an enumerated type to include another value

The domain model pre-provided structs and types can be extended as any user-defined type using the ASAM OpenSCENARIO language capabilities. The following guidelines show how to extend the ASAM OpenSCENARIO domain model for specific purposes.

9.3.3 Adding a new behavior

Primitive behaviors are implemented in ASAM OpenSCENARIO using actions. Actions can be executed or observed in a scenario.

If you need to activate or observe a new behavior or automation function as part of your development and V&V process, you can add and use that new behavior or function.

9.3.3.1 Recommended process

The following process is recommended for adding new behaviors:

Identify the container actor.
Check the ASAM OpenSCENARIO domain model, to see if one of the existing actors matches your needs.
For example, if you want to make an entity of type person jump, you can extend the actor person and add a jump action to it.
If no actor matches your needs, define a new actor.
For example, if you want to make a horse gallop across the road, define a new actor horse and associate the gallop action to it.
Add the needed action to the actor.

9.3.3.2 Examples

9.3.3.2.1 Adding an action to an existing standard actor

The following example adds the action jump to the existing actor person.

Code 1. Extending person with jump

extend person:
    age: uint with:
        keep(it in [1..120])

    action jump:
        height: length
        jump_num: uint with:
            keep(it in [1..5])
        keep(age > 60 => height < 0.1m)

Comments:

A constraint was added between the new jump scenario and the age.
Note that all person actors and derivatives have an age attribute, which is randomized now.
Connecting the abstract action to the execution platform (meaning implementing or observing the jump) is implementation-specific and outside of the scope of the ASAM OpenSCENARIO standard.

9.3.3.2.2 Adding an action to activate the ACC function

This example demonstrates how an action sets a state variable. Conditions are, that the ACC automation function can be activated or deactivated at a certain cruising speed.

Code 2. Extending actor vehicle to request ACC-mode in different speeds

extend vehicle:
    action request_acc_mode:
        cruise_speed: speed
        turn_on: bool

9.3.3.2.3 Adding a new actor

A horse is not part of the ASAM OpenSCENARIO domain model. In this example, a new actor for a horse is created. It makes sense to derive a horse from animal.

Code 3. Adding a horse actor with a gallop action

actor horse: animal:
    scenario gallop:
        speed: speed

9.3.3.2.4 Using conditional inheritance

ASAM OpenSCENARIO allows extending a struct under certain conditions. For example, you may want to add a boolean siren field to entities of type emergency vehicle. The following code demonstrates how to do this.

Code 4. Conditionally adding a siren field

actor vehicle:
    is_emergency: bool  #each vehicle can be an emergency or not

actor emergency_vehicle: vehicle(is_emergency:true):
    siren: bool

Comments:

The actor emergency_vehicle is defined to be a vehicle. Its value vehicle_category is emergency. emergency_vehicle inherits all vehicle attributes with the addition of a siren boolean field.
Note that randomizing a vehicle may generate an emergency vehicle, which in turn has a siren field that is randomly turned on or off.

9.3.3.3 Extending an existing struct

Often users do not need a brand-new actor or action. They only want to extend existing entities with new struct members, such as a new field, constraint, cover point, event, and so on.

The following example demonstrates these capabilities.

Code 5. Adding a struct member to an existing struct

enum size: [small, medium, large]

extend vehicle:
    my_size: size          # field extension
    keep (speed < 60kph)   # layer a constraint

    event stopped          # add an event

9.3.3.3.1 Extending enumerated types

ASAM OpenSCENARIO allows the extension of enumerated types. This may affect all structs that contain a field of that type. For example, if a new car model is defined, both generation and coverage automatically adjusts to contain the new added car model.

Assume the following definition:

type size: [small, medium, large]

actor vehicle;
    my_size: size   # size can be either small, medium, or large

To add another option of the vehicle, in this case the vehicle should also be huge, you can extend the enumerated type as follows:

extend size: [huge]

The base definition with the extension is equivalent to the following code:

enum size: [small, medium, large, huge]

actor vehicle;
    my_size: size   # can be small, medium, large, huge

9.3.3.3.2 An example for extending

Create a reach_acceleration action that gets a vehicle to a certain acceleration. The following example achieves the desired result.

Code 6. Extend an actor with reach_acceleration

scenario vehicle.reach_acceleration:
        target_acceleration: acceleration

        do drive() with:
            acceleration(target_acceleration, at: end)

Once this code is loaded into an OpenSCENARIO tool, a new reach_acceleration specialized action is available and can be used in any user scenario.

This simple example triggers a single drive action. Users may create more sophisticated compositions for more complicated maneuvers using composition of other actions and scenarios.

9.3.4 Extending the Abstract Road network

The modifiers explained in Section 8.5, "Abstract road network" help users build certain parts of a route of a road network. This section provides an example of how these can be further extended.

9.3.4.1 An example of extending a crossing

A potential addition to a crossing that allows for start_line and end_line in addition to start_lane and end_lane.

Suggestion: Allow for start_line and end_line to also be used to define crossings, since all a lane is to crossing_connects() is a centerline of the lane.

Future definition: A crossing is an overlay or virtual path that acts as a route and has a direct relationship to lanes or lines made with free_space_points.

When a crossing is a route, it may also be used in the following way with four instances of route_point that form two straight lines:

Any straight line could be used as a starting line and ending line just like a start_lane and end_lane.

However, geometry is still reserved for future implementation. The following description does not create an accurate definition for the creation of a line from points.

The origin of a crossing for s-coordinates is determined from a lane centerline and s-position along that line.
However, its origin can also originate along a line defined by two free space points.
The start_lane assigns which lane starts the crossing.
Alternatively, start_line assigns which line starts the crossing.
The end_lane assigns which lane completes the crossing.
Alternatively, end_line assigns which line completes the crossing.
In the case of straight line geometry, the crossing ends at the natural connection with the centerline of the end lane or a line defined by two free-space points.

map: map
free_space_line1: list of route_point = [point1, point2]
sidewalk1: lane
crossing1: crossing with:
    keep(it.width == 3.5m)

map.crossing_connects(crossing1,
                  start_line: free_space_line1,
                  end_lane: sidewalk1,
                  start_s_coord: 5m,
                  start_angle: 90deg)

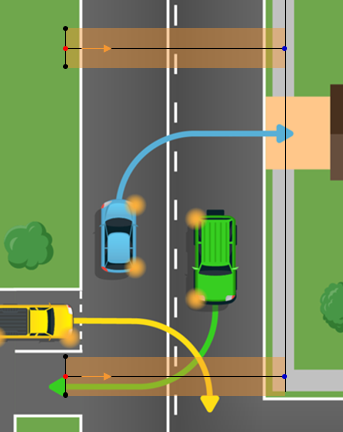

Figure 26. Crossing with line from free space points

The red dot is the origin on the start_line and the blue dot is an end_point in end_lane.

A crossing may also be specified with a specific start_angle:

map: map
free_space_line1: list of free_space_point = [point1, point2]
free_space_line2: list of free_space_point = [point3, point4]
crossing1: crossing with:
    keep(it.width == 3.5m)

map.crossing_connects(crossing1,
                    start_line: free_space_line1,
                    end_line: free_space_line2,
                    start_s_coordinate: 5m,
                    start_angle: 85deg)

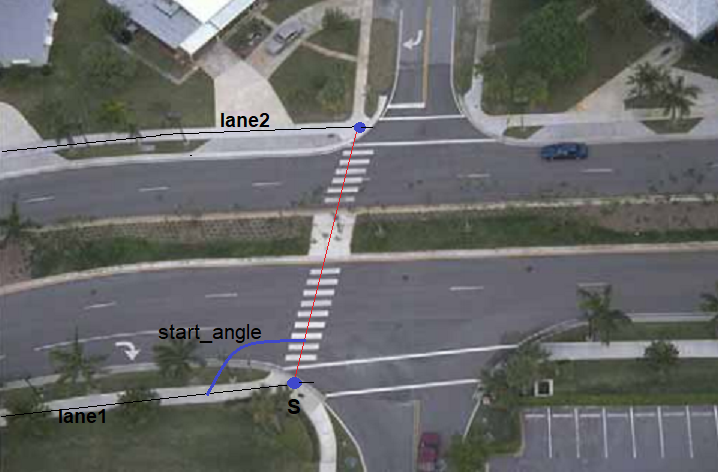

Figure 27. Picture of crossing with specified start_angle

9.3.5 Mapping to other languages and domain models

Today, the automotive industry uses multiple languages and domain models to describe scenarios, actors, and actions. These languages and domain models are either proprietary or inconsistent to one another and not standardized.

The domain model of ASAM OpenSCENARIO contains generic and specialized actions:

The generic actions provide a flexible mechanism to describe a rich set of scenarios.
The specialized actions are a simplified interface for a few of the commonly used actions.

Users can also add specialized actions to map the ASAM OpenSCENARIO domain model into existing commercial or proprietary solutions.
