osi3::SensorView Struct Reference

The sensor view is derived from GroundTruth and used as input to sensor models. More...

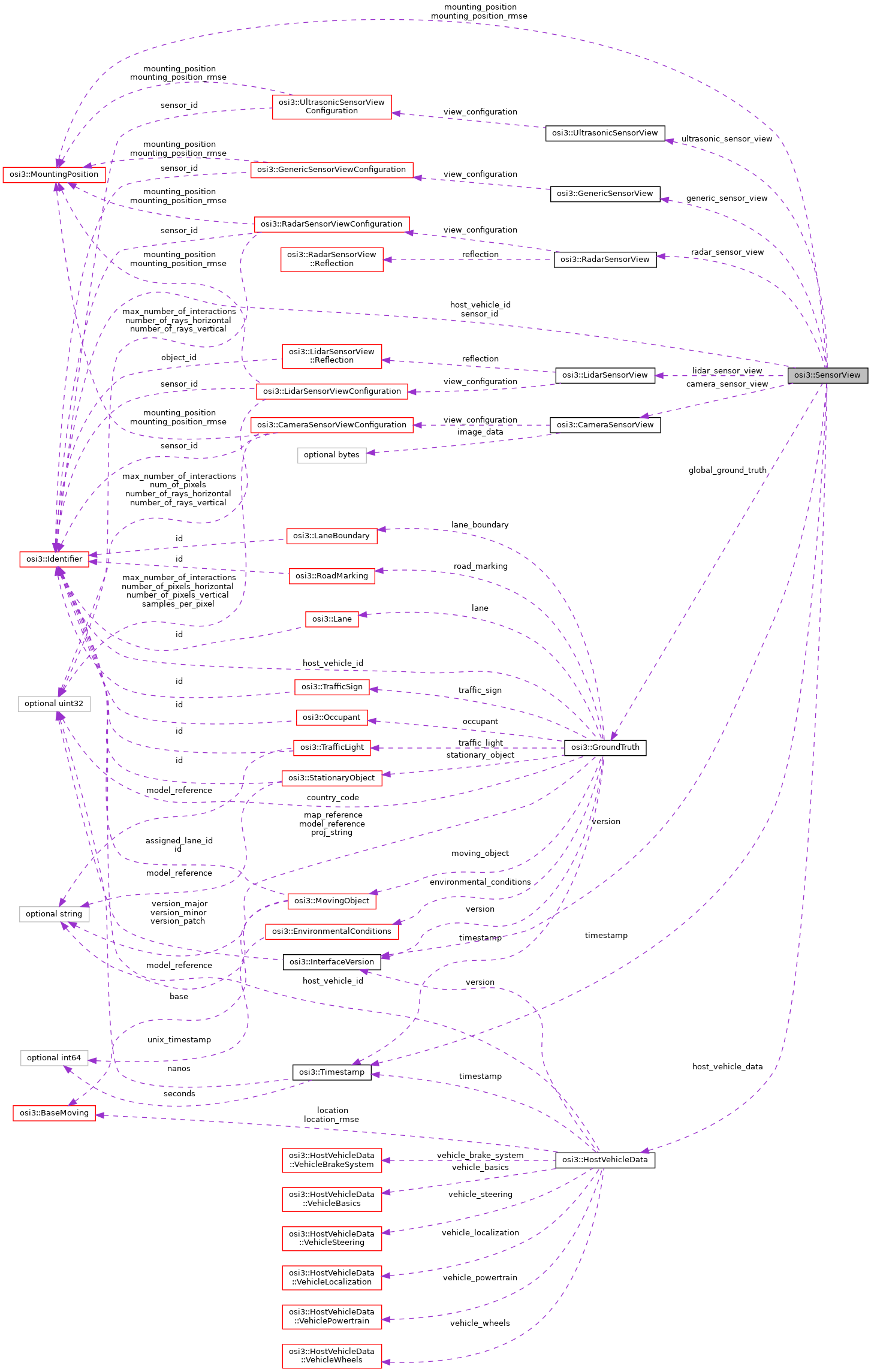

Collaboration diagram for osi3::SensorView:

Public Attributes
optional InterfaceVersion	version = 1
optional Timestamp	timestamp = 2
optional Identifier	sensor_id = 3
optional MountingPosition	mounting_position = 4
optional MountingPosition	mounting_position_rmse = 5
optional HostVehicleData	host_vehicle_data = 6
optional GroundTruth	global_ground_truth = 7
optional Identifier	host_vehicle_id = 8
repeated GenericSensorView	generic_sensor_view = 1000
repeated RadarSensorView	radar_sensor_view = 1001
repeated LidarSensorView	lidar_sensor_view = 1002
repeated CameraSensorView	camera_sensor_view = 1003
repeated UltrasonicSensorView	ultrasonic_sensor_view = 1004

Detailed Description

The sensor view is derived from GroundTruth and used as input to sensor models.

The sensor view information is supposed to provide input to sensor models for simulation of actual real sensors. All information regarding the environment is given with respect to the virtual sensor coordinate system specified in SensorView::mounting_position, except for the individual physical technology-specific data, which is given with respect to the physical sensor coordinate system specified in the corresponding physical sensor's mounting_position, and the global_ground_truth, which is given in global coordinates.

When simulating multiple distinct sensors, each sensor can consume an individual copy of the SensorView interface. This allows an independent treatment of the sensors.

Alternatively combined sensor models can also consume one combined SensorView, with either combined or separate SensorData outputs, depending on model architecture.

Member Data Documentation

camera_sensor_view

repeated CameraSensorView osi3::SensorView::camera_sensor_view = 1003

Camera-specific SensorView(s).

Note

OSI uses singular instead of plural for repeated field names.

generic_sensor_view

repeated GenericSensorView osi3::SensorView::generic_sensor_view = 1000

Generic SensorView(s).

Note

OSI uses singular instead of plural for repeated field names.

global_ground_truth

optional GroundTruth osi3::SensorView::global_ground_truth = 7

Ground truth w.r.t. global coordinate system.

This is the ground truth that is provided to the sensor model by the simulation environment. It may be filtered as per the requirements of the sensor model as expressed by the SensorViewConfiguration message(s) that where exchanged during the simulation initialization phase.

Note

The host vehicle is always contained in the ground truth provided, regardless of any filtering. The ground truth MUST contain at least as much of the ground truth data, as is requested by the sensor model, but MAY always contain more data, since the filtering is intended only as an optimization mechanism, not as a replacement of a proper sensor field of view modeling.

host_vehicle_data

optional HostVehicleData osi3::SensorView::host_vehicle_data = 6

Host vehicle data.

Host vehicle data is data that the host vehicle knows about itself, e.g. from location sensors, internal sensors and ECU bus data, etc., that is made available to sensors as input.

host_vehicle_id

optional Identifier osi3::SensorView::host_vehicle_id = 8

The ID of the host vehicle in the global_ground_truth data.

\rules refers_to: 'MovingObject' \endrules

lidar_sensor_view

repeated LidarSensorView osi3::SensorView::lidar_sensor_view = 1002

Lidar-specific SensorView(s).

Note

OSI uses singular instead of plural for repeated field names.

mounting_position

optional MountingPosition osi3::SensorView::mounting_position = 4

The virtual mounting position of the sensor (origin and orientation of the sensor coordinate system) given in vehicle coordinates [1]. The virtual position pertains to the sensor as a whole, regardless of the actual position of individual physical detectors, and governs the sensor-relative coordinates in detected objects of the sensor as a whole. Individual features detected by individual physical detectors are governed by the actual physical mounting positions of the detectors, as indicated in the technology-specific sub-views and sub-view configurations.

• x-direction of sensor coordinate system: sensor viewing direction
• z-direction of sensor coordinate system: sensor (up)
• y-direction of sensor coordinate system: perpendicular to x and z right hand system

Reference:

[1] DIN Deutsches Institut fuer Normung e. V. (2013). DIN ISO 8855 Strassenfahrzeuge - Fahrzeugdynamik und Fahrverhalten - Begriffe. (DIN ISO 8855:2013-11). Berlin, Germany.

Note

This field is usually static during the simulation.

The origin of vehicle's coordinate system in world frame is ( MovingObject::base . BaseMoving::position + Inverse_Rotation_yaw_pitch_roll( MovingObject::base . BaseMoving::orientation) * MovingObject::VehicleAttributes::bbcenter_to_rear) . The orientation of the vehicle's coordinate system is equal to the orientation of the vehicle's bounding box MovingObject::base . BaseMoving::orientation.

mounting_position_rmse

optional MountingPosition osi3::SensorView::mounting_position_rmse = 5

The root mean squared error of the mounting position.

radar_sensor_view

repeated RadarSensorView osi3::SensorView::radar_sensor_view = 1001

Radar-specific SensorView(s).

Note

OSI uses singular instead of plural for repeated field names.

sensor_id

optional Identifier osi3::SensorView::sensor_id = 3

The ID of the sensor at host vehicle's mounting_position.

This is the ID of the virtual sensor, to be used in its detected object output; it is distinct from the IDs of its physical detectors, which are used in the detected features.

\rules is_globally_unique \endrules

timestamp

optional Timestamp osi3::SensorView::timestamp = 2

The data timestamp of the simulation environment. Zero time is arbitrary but must be identical for all messages. Zero time does not need to coincide with the UNIX epoch. Recommended is the starting time point of the simulation.

Note

For sensor view data this timestamp coincides both with the notional simulation time the data applies to and the time it was sent (there is no inherent latency for sensor view data, as opposed to sensor data).

ultrasonic_sensor_view

repeated UltrasonicSensorView osi3::SensorView::ultrasonic_sensor_view = 1004

Ultrasonic-specific SensorView(s).

Note

OSI uses singular instead of plural for repeated field names.

version

optional InterfaceVersion osi3::SensorView::version = 1

The interface version used by the sender (simulation environment).

---

The documentation for this struct was generated from the following file:

• osi_sensorview.proto
