osi3::TrafficSign::SupplementarySign::Classification Struct Reference

Classification data for a supplementary traffic sign. More...

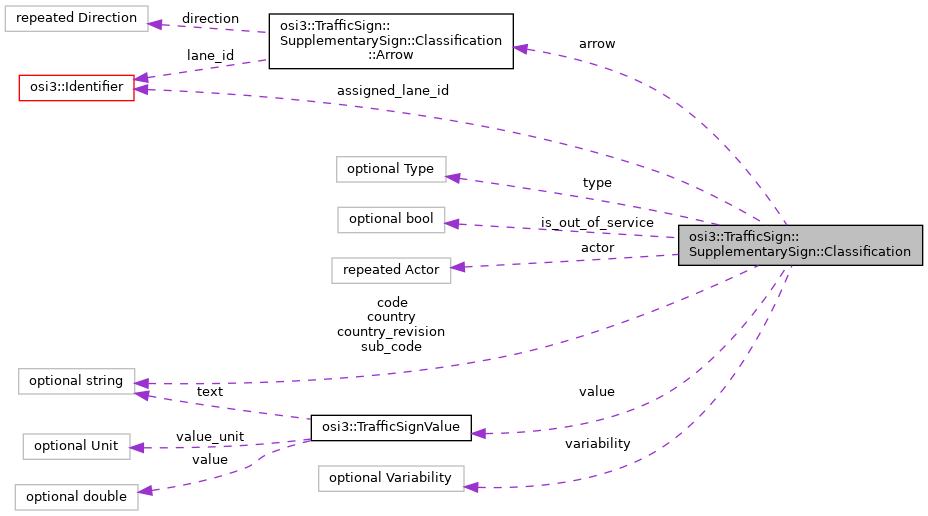

Collaboration diagram for osi3::TrafficSign::SupplementarySign::Classification:

Classes
struct	Arrow
	An arrow denoting a direction shown on the traffic sign. More...

Public Types
enum	Type {   TYPE_UNKNOWN = 0 , TYPE_OTHER = 1 , TYPE_NO_SIGN = 2 , TYPE_TEXT = 41 ,   TYPE_SPACE = 39 , TYPE_TIME = 26 , TYPE_ARROW = 30 , TYPE_CONSTRAINED_TO = 46 ,   TYPE_EXCEPT = 45 , TYPE_VALID_FOR_DISTANCE = 3 , TYPE_PRIORITY_ROAD_BOTTOM_LEFT_FOUR_WAY = 27 , TYPE_PRIORITY_ROAD_TOP_LEFT_FOUR_WAY = 28 ,   TYPE_PRIORITY_ROAD_BOTTOM_LEFT_THREE_WAY_STRAIGHT = 32 , TYPE_PRIORITY_ROAD_BOTTOM_LEFT_THREE_WAY_SIDEWAYS = 33 , TYPE_PRIORITY_ROAD_TOP_LEFT_THREE_WAY_STRAIGHT = 34 , TYPE_PRIORITY_ROAD_BOTTOM_RIGHT_FOUR_WAY = 29 ,   TYPE_PRIORITY_ROAD_TOP_RIGHT_FOUR_WAY = 31 , TYPE_PRIORITY_ROAD_BOTTOM_RIGHT_THREE_WAY_STRAIGHT = 35 , TYPE_PRIORITY_ROAD_BOTTOM_RIGHT_THREE_WAY_SIDEWAY = 36 , TYPE_PRIORITY_ROAD_TOP_RIGHT_THREE_WAY_STRAIGHT = 37 ,   TYPE_VALID_IN_DISTANCE = 4 , TYPE_STOP_IN = 25 , TYPE_LEFT_ARROW = 11 , TYPE_LEFT_BEND_ARROW = 13 ,   TYPE_RIGHT_ARROW = 12 , TYPE_RIGHT_BEND_ARROW = 14 , TYPE_ACCIDENT = 40 , TYPE_SNOW = 9 ,   TYPE_FOG = 8 , TYPE_ROLLING_HIGHWAY_INFORMATION = 48 , TYPE_SERVICES = 47 , TYPE_TIME_RANGE = 5 ,   TYPE_PARKING_DISC_TIME_RESTRICTION = 43 , TYPE_WEIGHT = 6 , TYPE_WET = 44 , TYPE_PARKING_CONSTRAINT = 42 ,   TYPE_NO_WAITING_SIDE_STRIPES = 38 , TYPE_RAIN = 7 , TYPE_SNOW_RAIN = 10 , TYPE_NIGHT = 19 ,   TYPE_STOP_4_WAY = 21 , TYPE_TRUCK = 15 , TYPE_TRACTORS_MAY_BE_PASSED = 16 , TYPE_HAZARDOUS = 17 ,   TYPE_TRAILER = 18 , TYPE_ZONE = 20 , TYPE_MOTORCYCLE = 22 , TYPE_MOTORCYCLE_ALLOWED = 23 ,   TYPE_CAR = 24 }
enum	Actor {   ACTOR_UNKNOWN = 0 , ACTOR_OTHER = 1 , ACTOR_NO_ACTOR = 2 , ACTOR_AGRICULTURAL_VEHICLES = 3 ,   ACTOR_BICYCLES = 4 , ACTOR_BUSES = 5 , ACTOR_CAMPERS = 6 , ACTOR_CARAVANS = 7 ,   ACTOR_CARS = 8 , ACTOR_CARS_WITH_CARAVANS = 9 , ACTOR_CARS_WITH_TRAILERS = 10 , ACTOR_CATTLE = 11 ,   ACTOR_CHILDREN = 12 , ACTOR_CONSTRUCTION_VEHICLES = 13 , ACTOR_DELIVERY_VEHICLES = 14 , ACTOR_DISABLED_PERSONS = 15 ,   ACTOR_EBIKES = 16 , ACTOR_ELECTRIC_VEHICLES = 17 , ACTOR_EMERGENCY_VEHICLES = 18 , ACTOR_FERRY_USERS = 19 ,   ACTOR_FORESTRY_VEHICLES = 20 , ACTOR_HAZARDOUS_GOODS_VEHICLES = 21 , ACTOR_HORSE_CARRIAGES = 22 , ACTOR_HORSE_RIDERS = 23 ,   ACTOR_INLINE_SKATERS = 24 , ACTOR_MEDICAL_VEHICLES = 25 , ACTOR_MILITARY_VEHICLES = 26 , ACTOR_MOPEDS = 27 ,   ACTOR_MOTORCYCLES = 28 , ACTOR_MOTORIZED_MULTITRACK_VEHICLES = 29 , ACTOR_OPERATIONAL_AND_UTILITY_VEHICLES = 30 , ACTOR_PEDESTRIANS = 31 ,   ACTOR_PUBLIC_TRANSPORT_VEHICLES = 32 , ACTOR_RAILROAD_TRAFFIC = 33 , ACTOR_RESIDENTS = 34 , ACTOR_SLURRY_TRANSPORT = 35 ,   ACTOR_TAXIS = 36 , ACTOR_TRACTORS = 37 , ACTOR_TRAILERS = 38 , ACTOR_TRAMS = 39 ,   ACTOR_TRUCKS = 40 , ACTOR_TRUCKS_WITH_SEMITRAILERS = 41 , ACTOR_TRUCKS_WITH_TRAILERS = 42 , ACTOR_VEHICLES_WITH_GREEN_BADGES = 43 ,   ACTOR_VEHICLES_WITH_RED_BADGES = 44 , ACTOR_VEHICLES_WITH_YELLOW_BADGES = 45 , ACTOR_WATER_POLLUTANT_VEHICLES = 46 , ACTOR_WINTER_SPORTSPEOPLE = 47 }

Public Attributes
optional Variability	variability = 1
optional Type	type = 2
repeated TrafficSignValue	value = 3
repeated Identifier	assigned_lane_id = 4
repeated Actor	actor = 5
repeated Arrow	arrow = 6
optional bool	is_out_of_service = 7
optional string	country = 8
optional string	country_revision = 9
optional string	code = 10
optional string	sub_code = 11

Detailed Description

Classification data for a supplementary traffic sign.

When constructing a SupplementarySign, consider the use of the following members:

• In order to include numerical values indicated in the sign, use TrafficSignValue::value. Accompany this value with an indication of its unit of measure given by TrafficSignValue::value_unit.
• In order to include strings of text indicated in the sign, use TrafficSignValue::text. The interpretation of this text is left to a user-defined procedure.

Note

The definition of the sign types is thought to be independent of the country, even if the images used in this documentation are based on the German Road Traffic Regulations (StVO).

Member Enumeration Documentation

Actor

enum osi3::TrafficSign::SupplementarySign::Classification::Actor

Definition of the traffic actors the supplementary sign makes reference to. E.g. bikes, trucks, cars, etc.

Enumerator
ACTOR_UNKNOWN	An unknown actor
ACTOR_OTHER	Other actor (specified but known)
ACTOR_NO_ACTOR	The actor is not specified
ACTOR_AGRICULTURAL_VEHICLES	Agricultural vehicles
ACTOR_BICYCLES	Bicycles
ACTOR_BUSES	Buses
ACTOR_CAMPERS	Campers
ACTOR_CARAVANS	Caravans
ACTOR_CARS	Cars
ACTOR_CARS_WITH_CARAVANS	Cars with caravans
ACTOR_CARS_WITH_TRAILERS	Cars with trailers
ACTOR_CATTLE	Cattles
ACTOR_CHILDREN	Children
ACTOR_CONSTRUCTION_VEHICLES	Construction vehicles
ACTOR_DELIVERY_VEHICLES	Delivery vehicles
ACTOR_DISABLED_PERSONS	Disabled persons
ACTOR_EBIKES	E-bikes
ACTOR_ELECTRIC_VEHICLES	Electric vehicles
ACTOR_EMERGENCY_VEHICLES	Emergency vehicles
ACTOR_FERRY_USERS	Ferry users
ACTOR_FORESTRY_VEHICLES	Forestry vehicles
ACTOR_HAZARDOUS_GOODS_VEHICLES	Hazardous goods vehicles
ACTOR_HORSE_CARRIAGES	Horse carriages
ACTOR_HORSE_RIDERS	Horse riders
ACTOR_INLINE_SKATERS	Inline skaters
ACTOR_MEDICAL_VEHICLES	Medical vehicles
ACTOR_MILITARY_VEHICLES	Military vehicles
ACTOR_MOPEDS	Mopeds
ACTOR_MOTORCYCLES	Motorcycles
ACTOR_MOTORIZED_MULTITRACK_VEHICLES	Motorized multi-track vehicles
ACTOR_OPERATIONAL_AND_UTILITY_VEHICLES	Operational and utility vehicles
ACTOR_PEDESTRIANS	Pedestrians
ACTOR_PUBLIC_TRANSPORT_VEHICLES	Public transport vehicles
ACTOR_RAILROAD_TRAFFIC	Railroad traffic
ACTOR_RESIDENTS	Residents Note In the German StVO, typically denoted with the text "Anlieger" or "Bewohner"
ACTOR_SLURRY_TRANSPORT	Slurry transport
ACTOR_TAXIS	Taxis
ACTOR_TRACTORS	Tractors Note In the German StVO, tractors are defined as motorized vehicles that are not allowed to, or cannot, drive faster than 25 km/h
ACTOR_TRAILERS	Trailers
ACTOR_TRAMS	Trams
ACTOR_TRUCKS	Trucks Note In the German StVO, trucks are defined as motorized vehicles that are heavier than 3.5 t
ACTOR_TRUCKS_WITH_SEMITRAILERS	Trucks with semi-trailers
ACTOR_TRUCKS_WITH_TRAILERS	Trucks with trailers
ACTOR_VEHICLES_WITH_GREEN_BADGES	Vehicles with green badges
ACTOR_VEHICLES_WITH_RED_BADGES	Vehicles with red badges
ACTOR_VEHICLES_WITH_YELLOW_BADGES	Vehicles with yellow badges
ACTOR_WATER_POLLUTANT_VEHICLES	Water pollutant vehicles
ACTOR_WINTER_SPORTSPEOPLE	Winter sportspeople

Type

enum osi3::TrafficSign::SupplementarySign::Classification::Type

Definition of supplementary sign types.

For general supplementary signs use TYPE_TEXT. Supplementary signs with general space restrictions use TYPE_SPACE. Supplementary signs with general time restrictions use TYPE_TIME. Supplementary signs with displayed arrow directions use TYPE_ARROW. Supplementary signs constraint to one type of actors use TYPE_CONSTRAINED_TO. Supplementary signs that will exclude one type of actors use TYPE_EXCEPT. If supplementary signs combine contraints, restrictions, or plain text, Type is used in descending order in the following sequence: TYPE_EXCEPT, TYPE_CONSTRAINED_TO, TYPE_ARROW, TYPE_TIME, TYPE_SPACE, TYPE_TEXT.

Attention

Deprecated: A revision is planned for version 4.0.0 to replace the type enum with a more semantically defined enumeration, with the exact sign specification being relegated to the newly introduced 4-tupel traffic sign catalog specification as used in OpenDRIVE.

Enumerator
TYPE_UNKNOWN	Type of supplementary sign is unknown (must not be used in ground truth).
TYPE_OTHER	Other (unspecified but known) type of supplementary sign.
TYPE_NO_SIGN	There is no supplementary sign (must not be used in ground truth).
TYPE_TEXT	Text sign. Use it as a canvas for text-only signs: Use TrafficSignValue::value to indicate a numerical value indicated on the sign. Accompany this value with an indication of its unit of measure given by TrafficSignValue::value_unit. Use TrafficSignValue::text to indicate a string of text indicated on the sign. The following table summarizes possible configurations for this kind of supplementary signs: Image StVO-No. TrafficSignValue::text Meaning and Remarks StVO 1007-30 (StVO 2017) ”Ölspur” Trail of oil hazard. Note The identifier "StVO 1007-30" is currently used to denote the hazard of oil trails. Prior to the edition of 2017 of the Catalog of Street Signs of the Federal Road Research Institute of Germany - BASt, it was used to denote a restriction of the validity of the traffic sign to snowy / icy conditions. See TYPE_SNOW. StVO 1007-31 "Rauch" Smoke hazard. StVO 1007-32 "Rollsplitt" Loose gravel hazard. StVO 1007-33 "Baustellenausfahrt" Construction site exit. StVO 1007-34 ”Straßenschaden” Damaged roadway. StVO 1007-35 "Verschmutzte Fahrbahn" Dirty roadway. StVO 1007-36 "Sprengarbeiten" Blasting. StVO 1007-37 "Ausfahrt" Exit. StVO 1007-38 "Baustellen verkehr" Construction vehicles traffic. StVO 1007-39 "fehlende Fahrbahnmarkierung" Missing lane marking. StVO 1007-50 "Unfall" Accident hazard. See TYPE_ACCIDENT StVO 1007-51 "Hochwasser" Flood. StVO 1007-52 "neuer Fahrbahnbelag" New road surface. StVO 1007-53 "Spurrinnen" Wheel ruts. StVO 1007-54 "Linksabbieger" Left-turning drivers. StVO 1007-57 "Kuppe" Hilltop. StVO 1007-58 "Polizeikontrolle" Police check. StVO 1007-60 "Seitenstreifen nicht befahrbar" Side strips not passable. StVO 1007-61 "NEBEL" Restriction of the validity of the traffic sign to foggy. StVO 1007-62 "Zufahrt" Driveway. StVO 1008-30 ”Vorfahrt geändert” Priority changed. StVO 1008-31 ”Verkehrsführung geändert” Routing changed. StVO 1008-32 "Industriegebiet Schienenfahrzeuge haben Vorweg" Industrial area (rail traffic has priority). StVO 1008-33 "Hafengebiet Schienenfahrzeuge haben Vorweg" Port area (rail traffic has priority). StVO 1008-34 ”keine Wendemöglichkeit” No turning possibility. StVO 1012-30 (StVO 2017) "Ladezone" Loading zone. Note The identifier "StVO 1012-30" is currently used to denote a loading zone. Prior to the edition of 2017 of the Catalog of Street Signs of the Federal Road Research Institute of Germany - BASt, it was used to denote the beginning of the validity of regulation prescribed by the MainSign. See Begin . StVO 1012-30 "Anfang" Begin Note The identifier "StVO 1012-30" is currently used to denote a loading zone. Prior to the edition of 2017 of the Catalog of Street Signs of the Federal Road Research Institute of Germany - BASt, it was used to denote the beginning of the validity of regulation prescribed by the MainSign. See Loading zone. StVO 1012-31 "Ende" End. StVO 1012-34 ”Grüne Welle bei XX km/h” All green signals ("green wave") at certain speed. Use TrafficSignValue::value and TrafficSignValue::value_unit (e.g. km/h) to indicate the speed. StVO 1012-35 "bei Rot hier halten" Stop at red light. StVO 1012-36 ”Lärmschutz” Noise protection. See also: Noise protection with time limit StVO 1012-37 "Zuflussregelung" Inflow regulation. StVO 1012-38 "Nebenstrecke" Secondary route. StVO 1012-50 "Schule" School. StVO 1012-51 "Kindergarten" Kindergarten. StVO 1012-52 "Altenheim" Retirement home. StVO 1012-53 "Krankenhaus" Hospital. StVO 1013-50 "Seitenstreifen befahren" Driving on side stripes. StVO 1013-51 ”Seitenstreifen räumen” Vacate side stripes. StVO 1014-50 A letter among B,C,D or E Tunnel category according to ADR agreement. StVO 1028-31 "bis Baustelle frei" Exception up to construction site. StVO 1053-30 ”Parken in gekennzeichneten Flächen erlaubt” Parking in marked areas allowed. StVO 1053-31 "mit Parkschein" With parking ticket. StVO 1053-32 ”gebührenpflichtig” Fees apply. StVO 1053-34 "auf dem Seitenstreifen" On the shoulder. StVO 1053-36 "Durchgangsverkehr" Transit traffic. StVO 1053-52 ”nur innerhalb gekennzeichneter Parkflächen” Only within marked parking areas. StVO 1053-53 ”Parken mit Parkschein in gekennzeichneter flächen” Parking with parking permit in marked areas.
TYPE_SPACE	Text sign with distance indication. Use it as a canvas for text signs that make reference to a point or area in space: Use TrafficSignValue::value to include the distance indicated in the sign. Accompany this value with an indication of its unit of measure given by TrafficSignValue::value_unit (e.g. m), Use TrafficSignValue::text to indicate the sign's specific text, The following table summarizes possible configurations for this kind of supplementary signs: Image StVO-No. TrafficSignValue member(s) Meaning and Remarks StVO 1004-32 "STOP" + distance Stop in e.g. ... m StVO 1005-30 ”Reißverschluss erst in” + distance Zipper merge in e.g. ... m StVO 1007-59 "Ende Seitenstreifen in" + distance End of the side strip in e.g. ... m StVO 1013-52 "Ende in" + distance End in .. m StVO 1028-33 "Zufahrt bis frei" + distance or location Except up to ... If there is a prohibition for all vehicles, the street can still be used up to a certain point. To indicate the point, use one of the following alternatives: A numerical value described by TrafficSignValue::value and TrafficSignValue::value_unit (e.g. m) to indicate the point as a distance from the sign. A text described by TrafficSignValue::text in order to describe the point's location verbally, e.g. "Baugebiet ...".
TYPE_TIME	Text sign with time indication. Use it as a canvas for text signs that make: reference to a point in time or a time range. Use one or more TrafficSignValue messages to include the times indicated in the sign. Accompany each value with an indication of its unit of measure given by TrafficSignValue::value_unit, e.g. h. For each TrafficSignValue, TrafficSignValue::value indicates the time elapsed since midnight every day. Use the TrafficSignValue::text member of the first TrafficSignValue message to indicate the sign's specific text. Note Time interval need two TrafficSignValue messages, one to indicate their start and one to indicate their end. In case more than one time range is required, the TrafficSignValue::value member of the first TrafficSignValue message is interpreted as the beginning of the first interval, the TrafficSignValue::value member of the second TrafficSignValue message is interpreted as the end of the first interval, and so on. The following table summarizes possible configurations for this kind of supplementary signs: Image StVO-No. TrafficSignValue member(s) Meaning and Remarks StVO 1040-30 Time range Time range for validity of traffic sign. StVO 1040-31 Two time ranges Time range for validity of traffic sign - two ranges. For each time range, include a pair of TrafficSignValue messages according to the rules above. StVO 1040-34 "ab" + Date + Time of the day Restricted from point in time. Use three TrafficSignValue messages to indicate respectively the day of the month, the month of the year, and the hour of the day corresponding to the start of the restriction. The first two TrafficSignValue::value_unit should be set to TrafficSignValue::UNIT_NO_UNIT. For the last TrafficSignValue, TrafficSignValue::value indicates the time elapsed since midnight of the corresponding day, and TrafficSignValue::value_unit indicates the unit this time is expressed in, e.g. in min. StVO 1040-35 ”Lärmschutz” + time range Noise protection with time limit. See Noise protection. StVO 1040-36 "Schulweg" + time range Way to or from school with time limit. StVO 1042-30 "werktags" Working days. StVO 1042-31 "werktags" + time range Working days with time limit. StVO 1042-32 "werktags" + two time ranges Restricted to working days with two time intervals. For each time range, include a pair of TrafficSignValue messages according to the rules above. See also: Two time ranges. StVO 1042-33 "Mo-Fr" + time range Time range for validity of traffic sign with days of the week. StVO 1042-34 "Di,Do,Fr" + time range Tuesdays, Thursdays and Fridays with time limit. StVO 1042-35 "an Sonn- und Feiertagen" + time range Restricted times, Sundays and public holidays only. StVO 1042-36 ”Schulbus werktags außer samstags” + two time ranges School bus, restricted to daytimes For each time range, include a pair of TrafficSignValue messages according to the rules above. See also: Two time ranges, Working days except saturdays. StVO 1042-37 "Parken Sa und So erlaubt" Parking on Saturdays and Sundays allowed. StVO 1042-38 ”werktags außer samstags” Working days except saturdays. StVO 1042-51 "Sa und So" Saturdays and Sundays. StVO 1042-53 "werktags Schulweg" + time range Way to or from school with time limit on working days. See also Working days with time limit.
TYPE_ARROW	A supplementary sign showing a direction alone. Use together with the message Classification::arrow. The following signs can be built: Image StVO-No. Meaning and Remarks StVO 1000-13 Detour sign, three-quarter circle. Set Classification::arrow to Arrow::DIRECTION_CIRCLE_90_DEG_LEFT. StVO 1000-23 Detour sign, one-quarter circle. Set Classification::arrow to Arrow::DIRECTION_CIRCLE_90_DEG_RIGHT. StVO 1000-30 Bidirectional traffic sideways. Use two Classification::arrow messages. Set one to Arrow::DIRECTION_DIRECT_90_DEG_RIGHT and the other one to Arrow::DIRECTION_DIRECT_90_DEG_LEFT. StVO 1000-31 Bidirectional traffic back and forth. Use two Classification::arrow messages. Set one to Arrow::DIRECTION_DIRECT_0_DEG and the other one to Arrow::DIRECTION_DIRECT_180_DEG. StVO 1000-34 Detour sign, semicircle. Set Classification::arrow to Arrow::DIRECTION_CIRCLE_0_DEG.
TYPE_CONSTRAINED_TO	The list of traffic actors to which the main sign's regulation is constrained to. Use as many members of the Actor enumerator as needed to denote the related traffic actors. The following tables summarize possible configurations for this kind of supplementary signs: Image StVO-No. Actor Meaning and Remarks StVO 1000-12 ACTOR_PEDESTRIANS Use sidewalk on left side of roadway. Set Classification::arrow to Arrow::DIRECTION_DIRECT_90_DEG_LEFT. StVO 1000-22 ACTOR_PEDESTRIANS Use sidewalk on right side of roadway. Set Classification::arrow to Arrow::DIRECTION_DIRECT_90_DEG_RIGHT. StVO 1000-32 ACTOR_BICYCLES Bidirectional traffic bicycles sideways. Use two Classification::arrow messages. Set one to Arrow::DIRECTION_DIRECT_90_DEG_RIGHT and the other one to Arrow::DIRECTION_DIRECT_90_DEG_LEFT. StVO 1000-33 ACTOR_BICYCLES Bidirectional traffic bicyclesback and forth. Use two Classification::arrow messages. Set one to Arrow::DIRECTION_DIRECT_0_DEG and the other one to Arrow::DIRECTION_DIRECT_180_DEG. StVO 1010-50 ACTOR_MOTORIZED_MULTITRACK_VEHICLES Motorized multi-track vehicles. StVO 1010-51 ACTOR_TRUCKS Trucks. Note In the German StVO, trucks are defined as motorized vehicles that are heavier than 3.5 t. This supplementary sign also denotes the trucks' tractor units and trailers. Cars and buses with a total weight superior to 3.5 t are not denoted by this. sign. StVO 1010-52 ACTOR_BICYCLES Bicycles. StVO 1010-53 ACTOR_PEDESTRIANS Pedestrians. StVO 1010-54 ACTOR_HORSE_RIDERS Horse riders. StVO 1010-55 ACTOR_CATTLE Cattles. StVO 1010-56 ACTOR_TRAMS Trams. StVO 1010-57 ACTOR_BUSES Buses. StVO 1010-58 ACTOR_CARS Passenger cars. StVO 1010-59 ACTOR_CARS_WITH_TRAILERS Passenger cars with trailers. StVO 1010-60 ACTOR_TRUCKS_WITH_TRAILERS Trucks with trailers. StVO 1010-61 ACTOR_TRACTORS Tractors. Note In the German StVO, tractors are defined as motorized vehicles that are not allowed to, or cannot, drive faster than 25 km/h. StVO 1010-62 ACTOR_MOTORCYCLES Motorbikes. StVO 1010-63 ACTOR_MOPEDS Mopeds. StVO 1010-64 ACTOR_HORSE_CARRIAGES Horse carriages. StVO 1010-65 ACTOR_EBIKES E-bikes. StVO 1010-66 ACTOR_ELECTRIC_VEHICLES Electric vehicles. See also: StVO 1050-33. StVO 1010-67 ACTOR_CAMPERS Campers. StVO 1012-32 ACTOR_BICYCLES Cyclists must walk. Set TrafficSignValue::text as "absteigen". StVO 1049-11 ACTOR_TRACTORS Overtaking of tractors allowed. Set TrafficSignValue::text as ”dürfen überholt werden”. Note In the German StVO, tractors are defined as motorized vehicles that are not allowed to, or cannot, drive faster than 25 km/h. StVO 1050-30 ACTOR_TAXIS Taxis. StVO 1050-31 ACTOR_TAXIS A number of taxis. Use TrafficSignValue::value to indicate the number of taxis. Set TrafficSignValue::value_unit to TrafficSignValue::UNIT_NO_UNIT. StVO 1050-32 ACTOR_ELECTRIC_VEHICLES Electric vehicles during the charging process. Set TrafficSignValue::text as ”während des Ladevorgangs”. StVO 1050-33 ACTOR_ELECTRIC_VEHICLES Electric vehicles. See also: StVO 1010-66. StVO 1060-32 Two actors ACTOR_BUSES and ACTOR_CARS_WITH_TRAILERS. Buses and cars with trailers. Set TrafficSignValue::text as "auch". Also, some of the German StVO traffic signs denoting traffic actors for which the main sign's regulation applies exclusively can be constructed. Note In the German StVO, these signs typically include the word "Nur". Image StVO-No. Actor Meaning and Remarks StVO 1044-10 ACTOR_DISABLED_PERSONS Only disabled persons with an exceptional walking disability and blind persons. StVO 1044-11 ACTOR_DISABLED_PERSONS Only disabled persons with parking permit. Set TrafficSignValue::text as "mit Parkausweis Nr. XXXX". StVO 1044-12 ACTOR_DISABLED_PERSONS Only disabled persons with an exceptional walking disability and blind persons, with number of parking places. Use TrafficSignValue::value to indicate the number of parking places. Set TrafficSignValue::value_unit to TrafficSignValue::UNIT_NO_UNIT. Set TrafficSignValue::text as ”Parkstände”. StVO 1044-30 ACTOR_RESIDENTS Only residents with parking permit. Set TrafficSignValue::text as "mit Parkausweis Nr. XXXX". StVO 1048-14 ACTOR_TRUCKS_WITH_SEMITRAILERS Only trucks with semi-trailers. StVO 1048-15 Two actors: one set to ACTOR_TRUCKS_WITH_SEMITRAILERS and the other one set to ACTOR_TRUCKS_WITH_TRAILERS. Only trucks with trailers and trucks with semi-trailers. StVO 1048-18 ACTOR_RAILROAD_TRAFFIC Only railroad traffic. StVO 1048-20 Two actors: one set to ACTOR_CARS_WITH_TRAILERS and the other one set to ACTOR_TRUCKS. Only trucks with trailers and trucks with semi-trailers. Note In the German StVO, trucks are defined as motorized vehicles that are heavier than 3.5 t. This supplementary sign also denotes the trucks' tractor units and trailers. This supplementary sign excludes passenger cars and buses. StVO 1049-12 ACTOR_MILITARY_VEHICLES Only military vehicles. StVO 1049-13 Three actors, set to respectively ACTOR_TRUCKS, ACTOR_BUSES and ACTOR_CARS_WITH_TRAILERS. Only trucks, buses, passenger cars with trailers. Note In the German StVO, trucks are defined as motorized vehicles that are heavier than 3.5 t. This supplementary sign also denotes the trucks' tractor units and trailers. StVO 1052-30 ACTOR_HAZARDOUS_GOODS_VEHICLES Only hazardous goods vehicles. StVO 1052-31 ACTOR_WATER_POLLUTANT_VEHICLES Only water pollutant vehicles. In addition, some of the German StVO supplementary signs with actors that receive an explicit allowance to use the street or the shoulder can be constructed: Image StVO-No. Actor Meaning and Remarks StVO 1010-10 ACTOR_CHILDREN Children playing on the road and shoulder allowed. StVO 1010-11 ACTOR_WINTER_SPORTSPEOPLE Winter sports allowed. Use TrafficSignValue::value to indicate the number of taxis. Set TrafficSignValue::value_unit to TrafficSignValue::UNIT_NO_UNIT. StVO 1010-12 ACTOR_TRAILERS Trailers allowed. Note In the German StVO, this sign states that Trailers can park here without the usual two week temporal parking restriction. StVO 1010-13 ACTOR_CARAVANS Caravans allowed. Note In the German StVO, this sign states that Caravans can park here without the usual two week temporal parking restriction. StVO 1040-10 ACTOR_WINTER_SPORTSPEOPLE Winter sports within time range allowed. In order to indicate an allowance limited by a time period, use one TrafficSignValue message to indicate its start and one TrafficSignValue message to indicate its end. For each TrafficSignValue, TrafficSignValue::value indicates the time elapsed since midnight every day, and TrafficSignValue::value_unit indicates the unit this time is expressed in, e.g. in min. StVO 1007-55 ACTOR_WINTER_SPORTSPEOPLE Ski run crosses. Set TrafficSignValue::text as "kreuzt". StVO 1007-56 ACTOR_WINTER_SPORTSPEOPLE Ski trail. Set TrafficSignValue::text as "kreuzt". Finally, the signs StVO 1006-30 ACTOR_CARS_WITH_CARAVANS Slide danger for car/caravan combinations under strong winds. Set TrafficSignValue::text as "Schleudergefahr". StVO 1012-33 ACTOR_MOPEDS No mopeds. Set TrafficSignValue::text as "keine". can be incorporated.
TYPE_EXCEPT	The list of traffic actors for which the main sign's regulation does not apply or have a special driving allowance. Use as many members of the Actor enumerator as needed to denote the excepted traffic actors: Note In the German StVO, these signs include the word "frei". The following table summarizes possible configurations for this kind of supplementary signs: Image StVO-No. Actor Meaning and Remarks StVO 1020-11 ACTOR_DISABLED_PERSONS Except disabled persons with parking permit. Set TrafficSignValue::text as "mit Parkausweis Nr. XXXX". StVO 1020-12 Two actors: one set to ACTOR_BICYCLES and the other one set to ACTOR_RESIDENTS. Except cyclists and residents. StVO 1020-14 ACTOR_WINTER_SPORTSPEOPLE Except winter sportspeople. StVO 1020-30 ACTOR_RESIDENTS Except residents. StVO 1020-31 ACTOR_RESIDENTS Except residents or free parking. Set TrafficSignValue::text as "oder Parken". StVO 1020-32 ACTOR_RESIDENTS Except residents with parking permit. Set TrafficSignValue::text as "mit Parkausweis Nr. XXXX". StVO 1022-10 ACTOR_BICYCLES Except bicycles. StVO 1022-11 ACTOR_MOPEDS Except mopeds. StVO 1022-12 ACTOR_MOTORCYCLES Except motorcycles. StVO 1022-13 ACTOR_EBIKES Except e-bikes. StVO 1022-14 Two actors: one set to ACTOR_BICYCLES and the other one set to ACTOR_MOPEDS. Except bicycles and mopeds. StVO 1022-15 Two actors: one set to ACTOR_EBIKES and the other one set to ACTOR_MOPEDS. Except e-bikes and mopeds. StVO 1024-10 ACTOR_CARS Except passenger cars. StVO 1024-11 ACTOR_CARS_WITH_TRAILERS Except passenger cars with trailers. StVO 1024-12 ACTOR_TRUCKS Except trucks, their tractor unit and their trailers. Note In the German StVO, trucks are defined as motorized vehicles that are heavier than 3.5 t. This supplementary sign also denotes the trucks' tractor units and trailers. Cars and buses with a total weight superior to 3.5 t are not exempted of a rule by this sign. StVO 1024-13 ACTOR_TRUCKS_WITH_TRAILERS Except trucks with trailers. Note In the German StVO, trucks are defined as motorized vehicles that are heavier than 3.5 t. This supplementary sign also denotes the trucks' tractor units and trailers. Cars and buses with a total weight superior to 3.5 t are not exempted of a rule by this sign. StVO 1024-14 ACTOR_BUSES Except buses. StVO 1024-15 ACTOR_RAILROAD_TRAFFIC Except railroad traffic. StVO 1024-16 ACTOR_TRAMS Except trams. StVO 1024-17 ACTOR_TRACTORS Except tractors. Note In the German StVO, tractors are defined as motorized vehicles that are not allowed to, or cannot, drive faster than 25 km/h. StVO 1024-18 ACTOR_HORSE_CARRIAGES Except horse carriages. StVO 1024-19 ACTOR_CAMPERS Except campers with a maximum allowed mass. Use TrafficSignValue::value and TrafficSignValue::value_unit (e.g. t) to indicate the mass. StVO 1024-20 ACTOR_ELECTRIC_VEHICLES Except electric vehicles. See also: StVO 1026-61. StVO 1026-31 ACTOR_BUSES Except buses in ocasional service. Set TrafficSignValue::text as "im Gelegenheitsverkehr". StVO 1026-32 ACTOR_PUBLIC_TRANSPORT_VEHICLES Except public transport vehicles. StVO 1026-33 ACTOR_EMERGENCY_VEHICLES Except emergency vehicles. StVO 1026-34 ACTOR_MEDICAL_VEHICLES Except medical vehicles. StVO 1026-35 ACTOR_DELIVERY_VEHICLES Except delivery vehicles. StVO 1026-36 ACTOR_AGRICULTURAL_VEHICLES Except agricultural vehicles. StVO 1026-37 ACTOR_FORESTRY_VEHICLES Except forestry vehicles. StVO 1026-38 Two actors: one set to ACTOR_FORESTRY_VEHICLES and the other one set to ACTOR_AGRICULTURAL_VEHICLES. Except agricultural and forestry vehicles. StVO 1026-39 ACTOR_OPERATIONAL_AND_UTILITY_VEHICLES Except operational and utility vehicles. StVO 1026-60 ACTOR_ELECTRIC_VEHICLES Except electric vehicles during the charging process. Set TrafficSignValue::text as ”während des Ladevorgangs” StVO 1026-61 ACTOR_ELECTRIC_VEHICLES Except electric vehicles. See also: StVO 1024-20. StVO 1026-62 ACTOR_SLURRY_TRANSPORT Except slurry transport. StVO 1026-63 ACTOR_EBIKES Except e-bikes. StVO 1028-30 ACTOR_CONSTRUCTION_VEHICLES Except construction vehicles. StVO 1028-32 ACTOR_RESIDENTS Exception for residents up to construction site. Set TrafficSignValue::text as "bis Baustelle" StVO 1028-34 ACTOR_FERRY_USERS Except ferry users. StVO 1031-50 Three actors, set to respectively ACTOR_VEHICLES_WITH_RED_BADGES, ACTOR_VEHICLES_WITH_YELLOW_BADGES and ACTOR_VEHICLES_WITH_GREEN_BADGES Vehicles with red, yellow or green badges allowed Note Exemption from traffic ban according to 40(1) of the Federal Immission Control Act. StVO 1031-51 Two actors, set to respectively ACTOR_VEHICLES_WITH_YELLOW_BADGES and ACTOR_VEHICLES_WITH_GREEN_BADGES Vehicles with yellow or green badges allowed Note Exemption from traffic ban according to 40(1) of the Federal Immission Control Act. StVO 1031-52 ACTOR_VEHICLES_WITH_GREEN_BADGES Vehicles with green badges allowed Note Exemption from traffic ban according to 40(1) of the Federal Immission Control Act.
TYPE_VALID_FOR_DISTANCE	Traffic sign is valid for a certain distance. StVO 1001-30 StVO 1001-31 StVO 1001-32 StVO 1001-33 StVO 1001-34 StVO 1001-35 Use TrafficSignValue::value and TrafficSignValue::value_unit (e.g. m) to indicate the distance.
TYPE_PRIORITY_ROAD_BOTTOM_LEFT_FOUR_WAY	Priority road from bottom to left in the intersection. StVO 1002-10
TYPE_PRIORITY_ROAD_TOP_LEFT_FOUR_WAY	Priority road from top to left in the intersection. StVO 1002-11
TYPE_PRIORITY_ROAD_BOTTOM_LEFT_THREE_WAY_STRAIGHT	Priority road from bottom to left, junction from above. StVO 1002-12
TYPE_PRIORITY_ROAD_BOTTOM_LEFT_THREE_WAY_SIDEWAYS	Priority road from bottom to left, junction from the right. StVO 1002-13
TYPE_PRIORITY_ROAD_TOP_LEFT_THREE_WAY_STRAIGHT	Priority road from top to left, junction from below. StVO 1002-14
TYPE_PRIORITY_ROAD_BOTTOM_RIGHT_FOUR_WAY	Priority road from bottom to right in the intersection. StVO 1002-20
TYPE_PRIORITY_ROAD_TOP_RIGHT_FOUR_WAY	Priority road from top to right in the intersection. StVO 1002-21
TYPE_PRIORITY_ROAD_BOTTOM_RIGHT_THREE_WAY_STRAIGHT	Priority road from bottom to right, junction from above. StVO 1002-22
TYPE_PRIORITY_ROAD_BOTTOM_RIGHT_THREE_WAY_SIDEWAY	Priority road from bottom to right, junction from the left. StVO 1002-23
TYPE_PRIORITY_ROAD_TOP_RIGHT_THREE_WAY_STRAIGHT	Priority road from top to right, junction from below. StVO 1002-24
TYPE_VALID_IN_DISTANCE	Distance to the start of validity of the traffic sign. StVO 1004-30 StVO 1004-31 Use TrafficSignValue::value and TrafficSignValue::value_unit (e.g. m) to indicate the distance. Note For OSI 4.0 compatibility use TYPE_SPACE instead.
TYPE_STOP_IN	Stop in e.g. .. m. StVO 1004-32 Use TrafficSignValue::value and TrafficSignValue::value_unit (e.g. m) to indicate the distance. Note For OSI 4.0 compatibility use TYPE_SPACE instead.
TYPE_LEFT_ARROW	Direction, left-pointing. StVO 1000-10 Note For OSI 4.0 compatibility use TYPE_ARROW instead.
TYPE_LEFT_BEND_ARROW	Direction of potential danger, left-pointing. StVO 1000-11 Note For OSI 4.0 compatibility use TYPE_ARROW instead.
TYPE_RIGHT_ARROW	Direction, right-pointing. StVO 1000-20 Note For OSI 4.0 compatibility use TYPE_ARROW instead.
TYPE_RIGHT_BEND_ARROW	Direction of potential danger, right-pointing. StVO 1000-21 Note For OSI 4.0 compatibility use TYPE_ARROW instead.
TYPE_ACCIDENT	Accident hazard. StVO 1006-31 See also: TYPE_TEXT .
TYPE_SNOW	Restriction of the validity of the traffic sign to snowy / icy conditions. StVO 1007-30 Note The identifier "StVO 1007-30" was used to denote a restriction of the validity of the traffic sign to snowy / icy conditions until the edition of 2013 of the official Catalog of Street Signs of the Federal Road Research Institute of Germany - BASt. Since the edition corresponding to 2017, "StVO 1007-30" is used to denote the hazard of oil trails. See TYPE_OIL .
TYPE_FOG	Restriction of the validity of the traffic sign to foggy conditions. StVO 1007-61 Note For OSI 4.0 compatibility use TYPE_TEXT instead.
TYPE_ROLLING_HIGHWAY_INFORMATION	Information on rolling highway. StVO 1010-14
TYPE_SERVICES	Information about services. StVO 1010-15
TYPE_TIME_RANGE	Time range for validity of traffic sign. StVO 1040-30 StVO 1042-33 Use one TrafficSignValue message to indicate the start of the time range and one TrafficSignValue message to indicate the end of the time range. For each TrafficSignValue, TrafficSignValue::value indicates the time elapsed since midnight each day, and TrafficSignValue::value_unit indicates the unit this time is expressed in, e.g. in min. If including start and end days of the week, include two additional TrafficSignValue messages. For these messages, use TrafficSignValue::value_unit as TrafficSignValue::UNIT_NO_UNIT and TrafficSignValue::value as an integer from 1 to 7, where 1 denotes Monday and 7 denotes Sunday. Note For OSI 4.0 compatibility use TYPE_TIME instead.
TYPE_PARKING_DISC_TIME_RESTRICTION	Parking disc restrictions. StVO 1040-32 Parking disc restriction Use TrafficSignValue::value and TrafficSignValue::value_unit (e.g. min) to indicate the allowed duration of parking. StVO 1040-33 Parking disc restriction for marked parking areas Use TrafficSignValue::value and TrafficSignValue::value_unit (e.g. min) to indicate the allowed duration of parking. Set TrafficSignValue::text to ”in gekennzeichneten Flächen”.
TYPE_WEIGHT	Restriction of the validity of the traffic sign depending on the vehicle's weight. StVO 1053-33 StVO 1053-37 StVO 1060-33 Use TrafficSignValue::value and TrafficSignValue::value_unit (e.g. in t) to indicate the weight.
TYPE_WET	If "wet surface". StVO 1053-35
TYPE_PARKING_CONSTRAINT	Parking constraints. StVO 1053-38 pull in crosswise StVO 1053-39 pull in diagonally
TYPE_NO_WAITING_SIDE_STRIPES	No parking, also on verges/shoulder. StVO 1060-31
TYPE_RAIN	Restriction of the validity of the traffic sign to wet / rainy conditions. (No German StVO-Nr., Austrian StVO 1960 supplementary sign g).
TYPE_SNOW_RAIN	Combined restriction of the validity of the traffic sign to rainy or snowy conditions denoted by a single supplementary sign (instead of two signs of TYPE_RAIN and TYPE_SNOW respectively). (StVO -, Austria)
TYPE_NIGHT	Valid at night.
TYPE_STOP_4_WAY	Stop 4 way.
TYPE_TRUCK	Trucks. Note For OSI 4.0 compatibility use the message Actor instead.
TYPE_TRACTORS_MAY_BE_PASSED	Tractors may be passed. Note For OSI 4.0 compatibility use the message Actor instead.
TYPE_HAZARDOUS	Vehicles transporting hazardous goods. Note For OSI 4.0 compatibility use the message Actor instead.
TYPE_TRAILER	Trailers. Note For OSI 4.0 compatibility use the message Actor instead.
TYPE_ZONE	Zone. Note For OSI 4.0 compatibility use the message Actor instead.
TYPE_MOTORCYCLE	Motorcycles. Note For OSI 4.0 compatibility use the message Actor instead.
TYPE_MOTORCYCLE_ALLOWED	Motorcycles allowed. Note For OSI 4.0 compatibility use the message Actor instead.
TYPE_CAR	Cars. Note For OSI 4.0 compatibility use the message Actor instead.

Member Data Documentation

actor

repeated Actor osi3::TrafficSign::SupplementarySign::Classification::actor = 5

This enumerator indicates a traffic actor (e.g. bikes, cars, trucks and so on), that the supplementary sign makes reference to.

Attention

Deprecated: A revision is planned for version 4.0.0 to replace the type enum with a more semantically defined enumeration, with the exact sign specification being relegated to the newly introduced 4-tupel traffic sign catalog specification as used in OpenDRIVE.

arrow

repeated Arrow osi3::TrafficSign::SupplementarySign::Classification::arrow = 6

A direction arrow shown on the supplementary sign.

Attention

Deprecated: A revision is planned for version 4.0.0 to replace the type enum with a more semantically defined enumeration, with the exact sign specification being relegated to the newly introduced 4-tupel traffic sign catalog specification as used in OpenDRIVE.

assigned_lane_id

repeated Identifier osi3::TrafficSign::SupplementarySign::Classification::assigned_lane_id = 4

The IDs of the lanes that the sign is assigned to. May be multiple if the sign is valid for multiple lanes.

Note

OSI uses singular instead of plural for repeated field names.

\rules refers_to: Lane \endrules

code

optional string osi3::TrafficSign::SupplementarySign::Classification::code = 10

Code specification of the traffic sign catalog specification that identifies the actual traffic sign. This is part of the 4-tupel traffic sign catalog specification as used in OpenDRIVE.

Code identifier according to country and country revision, corresponds to the type field of OpenDRIVE.
code is only unique in combination with country and country_revision.
e.g. http://www.vzkat.de/2017/VzKat.htm

country

optional string osi3::TrafficSign::SupplementarySign::Classification::country = 8

Country specification of the traffic sign catalog specification that identifies the actual traffic sign. This is part of the 4-tupel traffic sign catalog specification as used in OpenDRIVE.

Country is specified using the ISO 3166-1, alpha-2 code https://en.wikipedia.org/wiki/ISO_3166-1_alpha-2, or the special OpenDRIVE country for generic signs.

country_revision

optional string osi3::TrafficSign::SupplementarySign::Classification::country_revision = 9

Revision specification of the traffic sign catalog specification that identifies the actual traffic sign. This is part of the 4-tupel traffic sign catalog specification as used in OpenDRIVE.

The year the traffic rules came into force.
e.g. "2017"

is_out_of_service

optional bool osi3::TrafficSign::SupplementarySign::Classification::is_out_of_service = 7

Boolean flag to indicate that the supplementary traffic sign is taken out of service. This can be achieved by visibly crossing the sign or covering it completely.

sub_code

optional string osi3::TrafficSign::SupplementarySign::Classification::sub_code = 11

Sub-code specification of the traffic sign catalog specification that identifies the actual traffic sign. This is part of the 4-tupel traffic sign catalog specification as used in OpenDRIVE.

Sub-code identifier according to country, country revision and code, corresponds to the subtype field of OpenDRIVE.
sub_code is only unique in combination with country, country_revision, and code.
e.g. http://www.vzkat.de/2017/VzKat.htm

type

optional Type osi3::TrafficSign::SupplementarySign::Classification::type = 2

Type of the supplementary sign.

Attention

Deprecated: A revision is planned for version 4.0.0 to replace the type enum with a more semantically defined enumeration, with the exact sign specification being relegated to the newly introduced 4-tupel traffic sign catalog specification as used in OpenDRIVE.

value

repeated TrafficSignValue osi3::TrafficSign::SupplementarySign::Classification::value = 3

Additional value(s) associated with the traffic sign, e.g. length, mass or starting time in time range.

Note

Field need not be set if traffic sign type does not require it.

OSI uses singular instead of plural for repeated field names.

variability

optional Variability osi3::TrafficSign::SupplementarySign::Classification::variability = 1

Variability.

---

The documentation for this struct was generated from the following file:

• osi_trafficsign.proto
