Additional value associated with a traffic sign or road marking, its unit and its text. The interpretation of this text is left to a user-defined procedure. More...

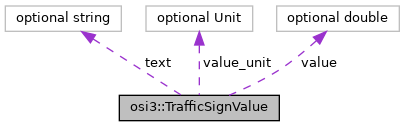

Collaboration diagram for osi3::TrafficSignValue:

[legend]

Public Types
enum	Unit { UNIT_UNKNOWN = 0 , UNIT_OTHER = 1 , UNIT_NO_UNIT = 2 , UNIT_KILOMETER_PER_HOUR = 3 , UNIT_MILE_PER_HOUR = 4 , UNIT_METER = 5 , UNIT_KILOMETER = 6 , UNIT_FEET = 7 , UNIT_MILE = 8 , UNIT_METRIC_TON = 9 , UNIT_LONG_TON = 10 , UNIT_SHORT_TON = 11 , UNIT_MINUTES = 12 , UNIT_DAY = 13 , UNIT_PERCENTAGE = 14 }

Public Attributes
optional double	value = 1

optional Unit	value_unit = 2

optional string	text = 3

Detailed Description

Additional value associated with a traffic sign or road marking, its unit and its text. The interpretation of this text is left to a user-defined procedure.

Member Enumeration Documentation

◆ Unit

enum osi3::TrafficSignValue::Unit

Unit for values on traffic sign.

Enumerator
UNIT_UNKNOWN	Unit of the sign's value is unknown (must not be used in ground truth).
UNIT_OTHER	Other (unspecified but known) unit of the sign's value.
UNIT_NO_UNIT	Value without unit.
UNIT_KILOMETER_PER_HOUR	Velocity. Kilometers per hour. Unit: km/h
UNIT_MILE_PER_HOUR	Velocity. Miles per hour. Unit: mph
UNIT_METER	Length. Meter. Unit: m
UNIT_KILOMETER	Length. Kilometer. Unit: km
UNIT_FEET	Length. Feet. Unit: ft
UNIT_MILE	Length. Mile. Unit: mile
UNIT_METRIC_TON	Weight. Ton. Unit: t
UNIT_LONG_TON	Weight. Long ton UK 1,016.047 kg. Unit: tn. l.
UNIT_SHORT_TON	Weight. Short ton USA 907.1847 kg. Unit: tn. sh.
UNIT_MINUTES	Time of day. Hour since midnight. Unit: min
UNIT_DAY	Day of the week. Days since Monday. Monday = 0; Tuesday = 1; ...
UNIT_PERCENTAGE	Percentage. Value. Unit: %

Member Data Documentation

◆ text

optional string osi3::TrafficSignValue::text = 3

Text associated with a sign, e.g. the name of a location whose distance to the sign is indicated therein. The interpretation of this text is left to a user-defined procedure.

◆ value

optional double osi3::TrafficSignValue::value = 1

Additional value associated with a traffic sign or road marking, e.g. value of a speed limit.

◆ value_unit

optional Unit osi3::TrafficSignValue::value_unit = 2

Unit for additional value.

The documentation for this struct was generated from the following file:

osi_trafficsign.proto
