A lane in the road network. More...
Classes | |
| struct | Classification |
Classification of a lane. More... | |
Public Attributes | |
| optional Identifier | id = 1 |
| optional Classification | classification = 2 |
| repeated ExternalReference | source_reference = 3 |
Detailed Description
A lane in the road network.
A lane is part of a road and mainly characterized by its center line. It also knows about any adjacent lanes, antecessor and successor lanes. The following images will be referred to by later comments. The lane l4 in image HighwayExit is used as reference if not mentioned otherwise.

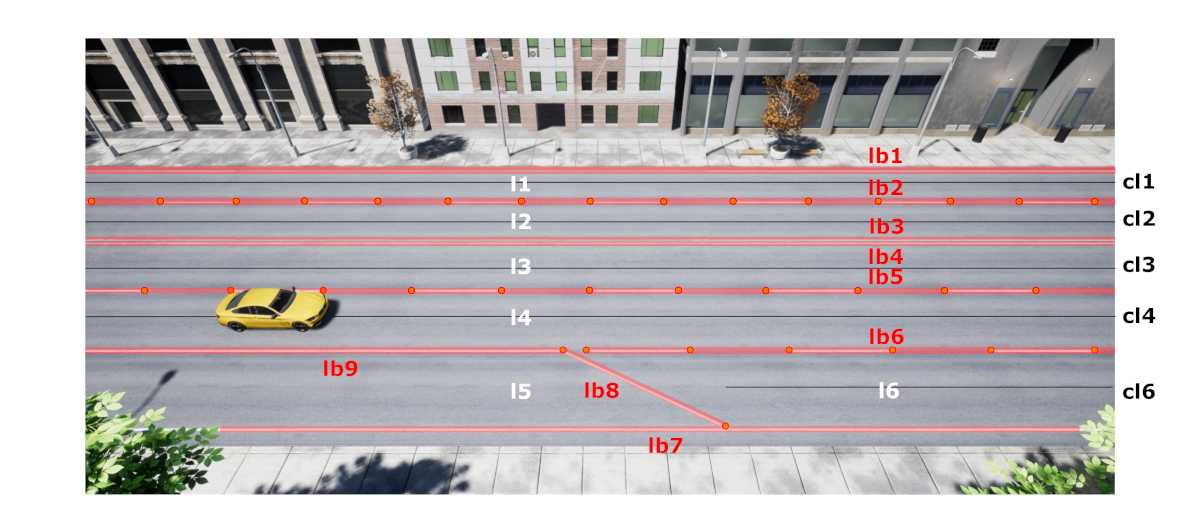

HighwayExit |

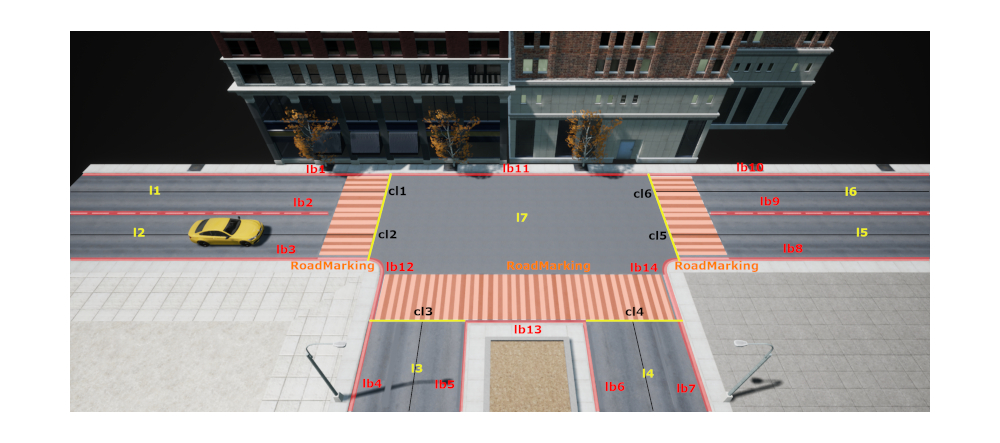

Intersection |
- Note
- In the examples, the symbols l1, l2, ... and lb1, lb2, ... stand for the lane ids and lane boundary ids respectively, i.e. for integers (uint64). The symbols cl1, cl2, ... represent the osi3::Lane::Classification::centerline elements of the lanes with the respective ids.
Member Data Documentation
◆ classification
| optional Classification osi3::Lane::classification = 2 |
The classification of the lane.
◆ id
| optional Identifier osi3::Lane::id = 1 |
The ID of the lane. Example: l4 (see reference picture HighwayExit).
- Note
- Note ID is global unique.
\rules is_globally_unique \endrules
◆ source_reference
| repeated ExternalReference osi3::Lane::source_reference = 3 |
Optional external reference to the lane source.
The external reference points to the source of the lane, if it is derived from one or more objects or external references.
For example, to reference a lane defined in an OpenDRIVE map the items should be set as follows:
- reference = URI to map, can remain empty if identical with definiton in
GroundTruth::map_reference - type = "net.asam.opendrive"
- identifier[0] = id of t_road
- identifier[1] = s of t_road_lanes_laneSection
- identifier[2] = id of t_road_lanes_laneSection_left_lane, t_road_lanes_laneSection_right_lane
- Note
- For non-ASAM Standards, it is implementation-specific how source_reference is resolved.
- The value has to be repeated, because one lane segment may be derived from more than one origin segment. Multiple sources may be added as reference as well, for example, a map and sensors.
The documentation for this struct was generated from the following file:
- osi_lane.proto
