osi3::TrafficSign::SupplementarySign Struct Reference

Additional supplementary sign modifying the main sign. More...

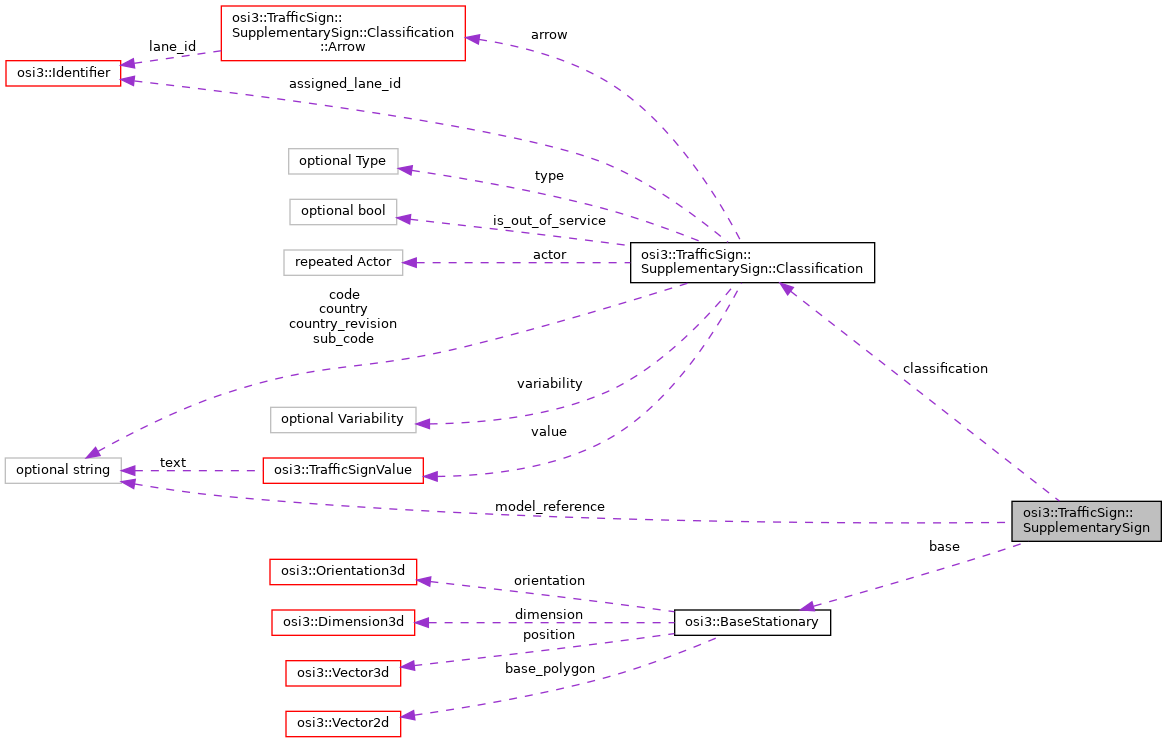

Collaboration diagram for osi3::TrafficSign::SupplementarySign:

Classes
struct	Classification
	Classification data for a supplementary traffic sign. More...

Public Attributes
optional BaseStationary	base = 1
optional Classification	classification = 2
optional string	model_reference = 3

Detailed Description

Additional supplementary sign modifying the main sign.

Member Data Documentation

base

optional BaseStationary osi3::TrafficSign::SupplementarySign::base = 1

The base parameters of the supplementary traffic sign.

The orientation of the bounding box SupplementarySign::base ( BaseStationary::orientation ) is defined as follows: The z-axis of the given BaseStationary::orientation is the vector from the bottom to the top of the supplementary traffic sign's 2D image plate. (Normally it is equal to the ground truth z-axis.) The x-axis of the given BaseStationary::orientation is view normal of the supplementary traffic sign's image. This x-axis points from the supplementary traffic sign's image in the direction from where a 'viewer' could see the supplementary traffic sign image.

classification

optional Classification osi3::TrafficSign::SupplementarySign::classification = 2

The classification of the supplementary traffic sign.

model_reference

optional string osi3::TrafficSign::SupplementarySign::model_reference = 3

Opaque reference of an associated 3D model of the supplementary traffic sign.

Note

It is implementation-specific how model_references are resolved to 3d models.

---

The documentation for this struct was generated from the following file:

• osi_trafficsign.proto
