Additional value associated with a traffic sign or road marking, its unit and its text. More...

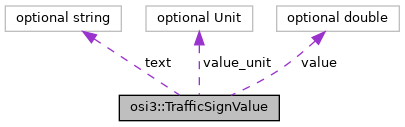

Collaboration diagram for osi3::TrafficSignValue:

Public Types
enum	Unit { UNIT_UNKNOWN = 0, UNIT_OTHER = 1, UNIT_NO_UNIT = 2, UNIT_KILOMETER_PER_HOUR = 3, UNIT_MILE_PER_HOUR = 4, UNIT_METER = 5, UNIT_KILOMETER = 6, UNIT_FEET = 7, UNIT_MILE = 8, UNIT_METRIC_TON = 9, UNIT_LONG_TON = 10, UNIT_SHORT_TON = 11, UNIT_MINUTES = 12, UNIT_DAY = 13, UNIT_PERCENTAGE = 14 }
	Unit for values on traffic sign. More...

Public Attributes
optional double	value = 1
	Additional value associated with a traffic sign or road marking, e.g. More...

optional Unit	value_unit = 2
	Unit for additional value. More...

optional string	text = 3
	Text associated with a sign, e.g. More...

Detailed Description

Additional value associated with a traffic sign or road marking, its unit and its text.

The interpretation of this text is left to a user-defined procedure

Member Enumeration Documentation

Unit for values on traffic sign.

Enumerator
UNIT_UNKNOWN	Unit of the sign's value is unknown (must not be used in ground truth).
UNIT_OTHER	Other (unspecified but known) unit of the sign's value.
UNIT_NO_UNIT	Value without unit.
UNIT_KILOMETER_PER_HOUR	Velocity. Kilometers per hour. Unit: km/h
UNIT_MILE_PER_HOUR	Velocity. Miles per hour. Unit: mph
UNIT_METER	Length. Meter. Unit: m
UNIT_KILOMETER	Length. Kilometer. Unit: km
UNIT_FEET	Length. Feet. Unit: ft
UNIT_MILE	Length. Mile. Unit: mile
UNIT_METRIC_TON	Weight. Ton. Unit: t
UNIT_LONG_TON	Weight. Long ton UK 1,016.047 kg. Unit: tn. l.
UNIT_SHORT_TON	Weight. Short ton USA 907.1847 kg. Unit: tn. sh.
UNIT_MINUTES	Time of day. Hour since midnight. Unit: min
UNIT_DAY	Day of the week. Days since Monday. Monday = 0; Tuesday = 1; ...
UNIT_PERCENTAGE	Percentage. Value. Unit: %

optional double osi3::TrafficSignValue::value = 1

Additional value associated with a traffic sign or road marking, e.g.

value of a speed limit.

optional Unit osi3::TrafficSignValue::value_unit = 2

Unit for additional value.

optional string osi3::TrafficSignValue::text = 3

Text associated with a sign, e.g.

the name of a location whose distance to the sign is indicated therein. The interpretation of this text is left to a user-defined procedure.

The documentation for this struct was generated from the following file:
