osi3::StatePoint Struct Reference

The StatePoint definition. More...

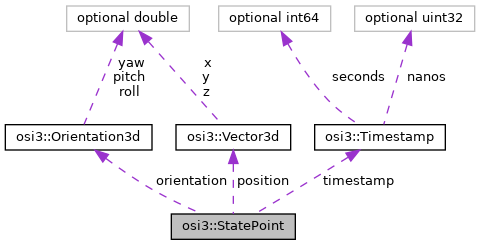

Collaboration diagram for osi3::StatePoint:

Public Attributes
optional Timestamp	timestamp = 1
	The timestamp of a StatePoint. More...
optional Vector3d	position = 2
	Position in the global coordinate system. More...
optional Orientation3d	orientation = 3
	Orientation in the global coordinate system. More...

Detailed Description

The StatePoint definition.

A reference to a time and pose. Typically used in a repeated field to define a trajectory.

Note

The StatePoint definition does not define mandatory fields. The context defines how and what fields are used. For example, in some cases only the pose variables are relevant and the timestamp is ignored.

Member Data Documentation

timestamp

optional Timestamp osi3::StatePoint::timestamp = 1

The timestamp of a StatePoint.

Note

Zero time does not need to coincide with the UNIX epoch.

position

optional Vector3d osi3::StatePoint::position = 2

Position in the global coordinate system.

Note

Remark: The definition of the reference point follows the specification of the BaseMoving message.

orientation

optional Orientation3d osi3::StatePoint::orientation = 3

Orientation in the global coordinate system.

---

The documentation for this struct was generated from the following file:

• osi_common.proto
