The header attributes of each sensor's logical detections list. More...

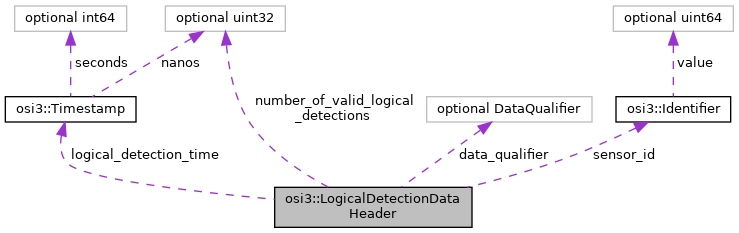

Collaboration diagram for osi3::LogicalDetectionDataHeader:

Public Types
enum	DataQualifier { DATA_QUALIFIER_UNKNOWN = 0, DATA_QUALIFIER_OTHER = 1, DATA_QUALIFIER_AVAILABLE = 2, DATA_QUALIFIER_AVAILABLE_REDUCED = 3, DATA_QUALIFIER_NOT_AVAILABLE = 4, DATA_QUALIFIER_BLINDNESS = 5, DATA_QUALIFIER_TEMPORARY_AVAILABLE = 6, DATA_QUALIFIER_INVALID = 7 }
	Data qualifier communicates the overall availability of the interface. More...

Public Attributes
optional Timestamp	logical_detection_time = 1
	Time stamp at which the transformation and optional fusion was finished in the global synchronized time. More...

optional DataQualifier	data_qualifier = 2
	Data Qualifier expresses to what extent the content of this event can be relied on. More...

optional uint32	number_of_valid_logical_detections = 3
	The current number of valid detections in the logical detections list. More...

repeated Identifier	sensor_id = 4
	The ID(s) of the sensor(s) that produced the detections for transformation and - in case of multiple sensors - fusion into logical detections. More...

Detailed Description

The header attributes of each sensor's logical detections list.

Member Enumeration Documentation

Data qualifier communicates the overall availability of the interface.

Enumerator
DATA_QUALIFIER_UNKNOWN	Unknown (must not be used in ground truth).
DATA_QUALIFIER_OTHER	Other (unspecified but known).
DATA_QUALIFIER_AVAILABLE	Data is available.
DATA_QUALIFIER_AVAILABLE_REDUCED	Reduced data is available.
DATA_QUALIFIER_NOT_AVAILABLE	Data is not available.
DATA_QUALIFIER_BLINDNESS	Sensor is blind.
DATA_QUALIFIER_TEMPORARY_AVAILABLE	Sensor temporary available.
DATA_QUALIFIER_INVALID	Sensor invalid.

optional Timestamp osi3::LogicalDetectionDataHeader::logical_detection_time = 1

Time stamp at which the transformation and optional fusion was finished in the global synchronized time.

Note: See SensorData::timestamp and SensorData::last_measurement_time for detailed discussions on the semantics of time-related fields.

optional DataQualifier osi3::LogicalDetectionDataHeader::data_qualifier = 2

Data Qualifier expresses to what extent the content of this event can be relied on.

optional uint32 osi3::LogicalDetectionDataHeader::number_of_valid_logical_detections = 3

The current number of valid detections in the logical detections list.

Note: This value has to be set if the list contains invalid logical detections.

repeated Identifier osi3::LogicalDetectionDataHeader::sensor_id = 4

The ID(s) of the sensor(s) that produced the detections for transformation and - in case of multiple sensors - fusion into logical detections.

The documentation for this struct was generated from the following file:
