Base parameters and overall states of the vehicle. More...

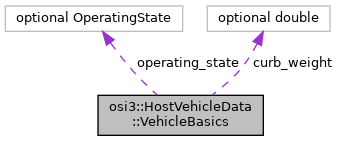

Collaboration diagram for osi3::HostVehicleData::VehicleBasics:

Public Types
enum	OperatingState { OPERATING_STATE_UNKNOWN = 0, OPERATING_STATE_OTHER = 1, OPERATING_STATE_SLEEP = 2, OPERATING_STATE_STANDBY = 3, OPERATING_STATE_BOARDING = 4, OPERATING_STATE_ENTERTAINMENT = 5, OPERATING_STATE_DRIVING = 6, OPERATING_STATE_DIAGNOSTIC = 7 }
	Possible operating states of the vehicle. More...

Public Attributes
optional double	curb_weight = 1
	The total mass of the vehicle (curb weight). More...

optional OperatingState	operating_state = 2
	The operating state of the vehicle. More...

Detailed Description

Base parameters and overall states of the vehicle.

Member Enumeration Documentation

Possible operating states of the vehicle.

It is user specific which states are used and how their transitions work.

Enumerator
OPERATING_STATE_UNKNOWN	The operating state is unknown.
OPERATING_STATE_OTHER	The operating state is another one.
OPERATING_STATE_SLEEP	The minimum electrical state of the vehicle (and its ECUs). Usually the driver has left the vehicle a while ago.
OPERATING_STATE_STANDBY	Cabin lights and entertainment are off. The vehicle can not be driven. Some ECUs are still operating and not in their minimum electrical sate. Usually the driver has left (and closed) the vehicle recently.
OPERATING_STATE_BOARDING	Some features of the vehicle are available e.g. cabin lights. Entertainment is off and the vehicle can not be driven. Usually the driver wants to enter or leave the vehicle.
OPERATING_STATE_ENTERTAINMENT	Entertainment, navigation or similiar systems can be used by the driver. The vehicle can not be driven. Usually the driver sits in the vehicle before or after a drive.
OPERATING_STATE_DRIVING	The electrical state that is necessary to drive the vehicle.
OPERATING_STATE_DIAGNOSTIC	The electrical state that is necessary for analysis and diagnostics.

optional double osi3::HostVehicleData::VehicleBasics::curb_weight = 1

The total mass of the vehicle (curb weight).

Unit: kg

Reference:: Paragraph 42 of the German Road Traffic Admission Regulations (StVZO).

optional OperatingState osi3::HostVehicleData::VehicleBasics::operating_state = 2

The operating state of the vehicle.

The documentation for this struct was generated from the following file:
