A stationary object (e.g. More...

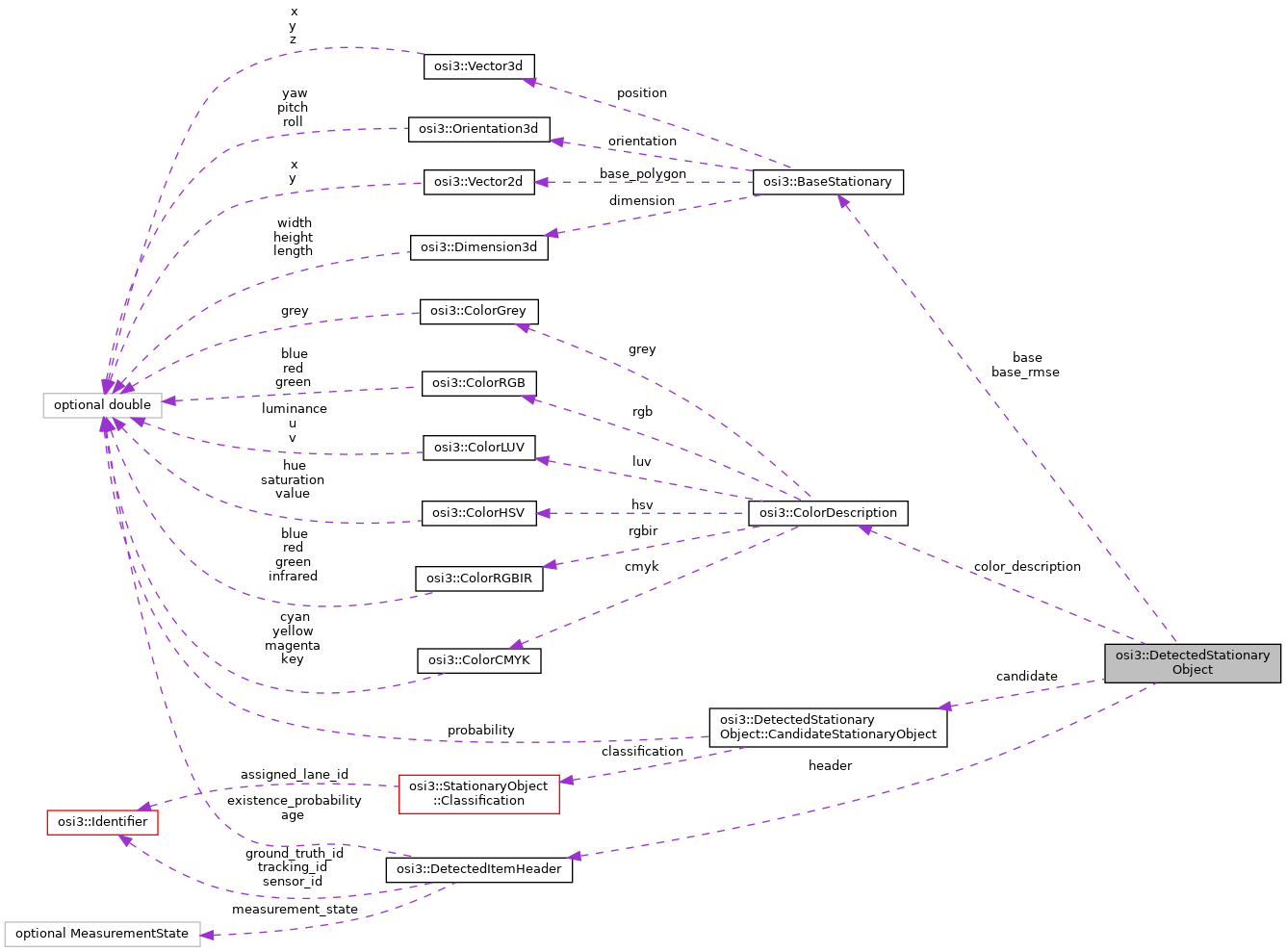

Collaboration diagram for osi3::DetectedStationaryObject:

[legend]

Classes
struct	CandidateStationaryObject
	A candidate for a detected stationary object as estimated by the sensor. More...

Public Attributes
optional DetectedItemHeader	header = 1
	Common information of one detected item. More...

optional BaseStationary	base = 2
	The base parameters of the stationary object. More...

optional BaseStationary	base_rmse = 3
	The root mean squared error of the base parameters of the detected stationary object (e.g. More...

repeated CandidateStationaryObject	candidate = 4
	A list of candidates for this stationary object as estimated by the sensor. More...

optional ColorDescription	color_description = 5
	The dominating color of the material of the structure. More...

Detailed Description

A stationary object (e.g.

landmark) in the environment as detected by the sensor.

Member Data Documentation

optional DetectedItemHeader osi3::DetectedStationaryObject::header = 1

Common information of one detected item.

optional BaseStationary osi3::DetectedStationaryObject::base = 2

The base parameters of the stationary object.

optional BaseStationary osi3::DetectedStationaryObject::base_rmse = 3

The root mean squared error of the base parameters of the detected stationary object (e.g.

landmark). StationaryObject::base has to be identical for all candidate stationary objects.

repeated CandidateStationaryObject osi3::DetectedStationaryObject::candidate = 4

A list of candidates for this stationary object as estimated by the sensor.

optional ColorDescription osi3::DetectedStationaryObject::color_description = 5

The dominating color of the material of the structure.

The documentation for this struct was generated from the following file:
